Multi-Stage Classifier
Inquiry Form

Features of Multi-stage Classifier LHP:
LHP multi-stage classifier, which is a closed-loop system composed of several LHB self-diffluent classifiers, can sort materials into different groups with different particle size distribution.

Parameters of Multi-stage Classifier LHP:
Spec Data LHP-1 LHP-2 LHP-3 LHP-4 LHP-5 LHP-6
2 3 2 3 2 3 2 3 2 3 2 3
Handling capacity (t/h) 50- 200 30- 150 300- 800 200- 700 600- 1200 500- 1000 1000- 2500 800- 2000 1500- 3500 1200- 3000 2500- 5000 2000- 4000
Fineness (um) 2-150 2-150 2-150 2-150 2-150 2-150 2-150 2-150 2-150 2-150 2-150 2-150
Efficiency (η=%) 75-95 75-95 75-95 75-95 75-95 75-95 75-95 75-95 75-95 75-95 75-95 75-95
Main power (kw) 3.7 5.2 8 13.5 11 16.5 13 20.5 18.5 33.5 29.5 51.5
Process Flow of Multi-stage Classifier LHP:

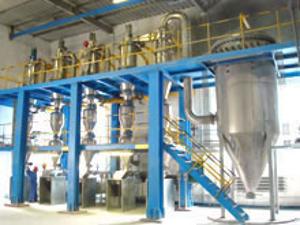

Flow Chart I
Multi-Stage Classifier
  • 1. Material feeding system
  • 2. Classifier I
  • 3. Classifier II
  • 4. Cyclonic collector
  • 5. Pulsed dust collector
  • 6. Induced draft fan

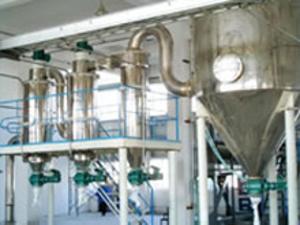

Flow Chart II
Multi-Stage Classifier
  • 1. Material feeding system
  • 2. Classifier I
  • 3. Classifier II
  • 4. Classifier III
  • 5. Cyclonic collector
  • 6. Pulsed dust collector
  • 7. Induced draft fan
>> Application Examples
